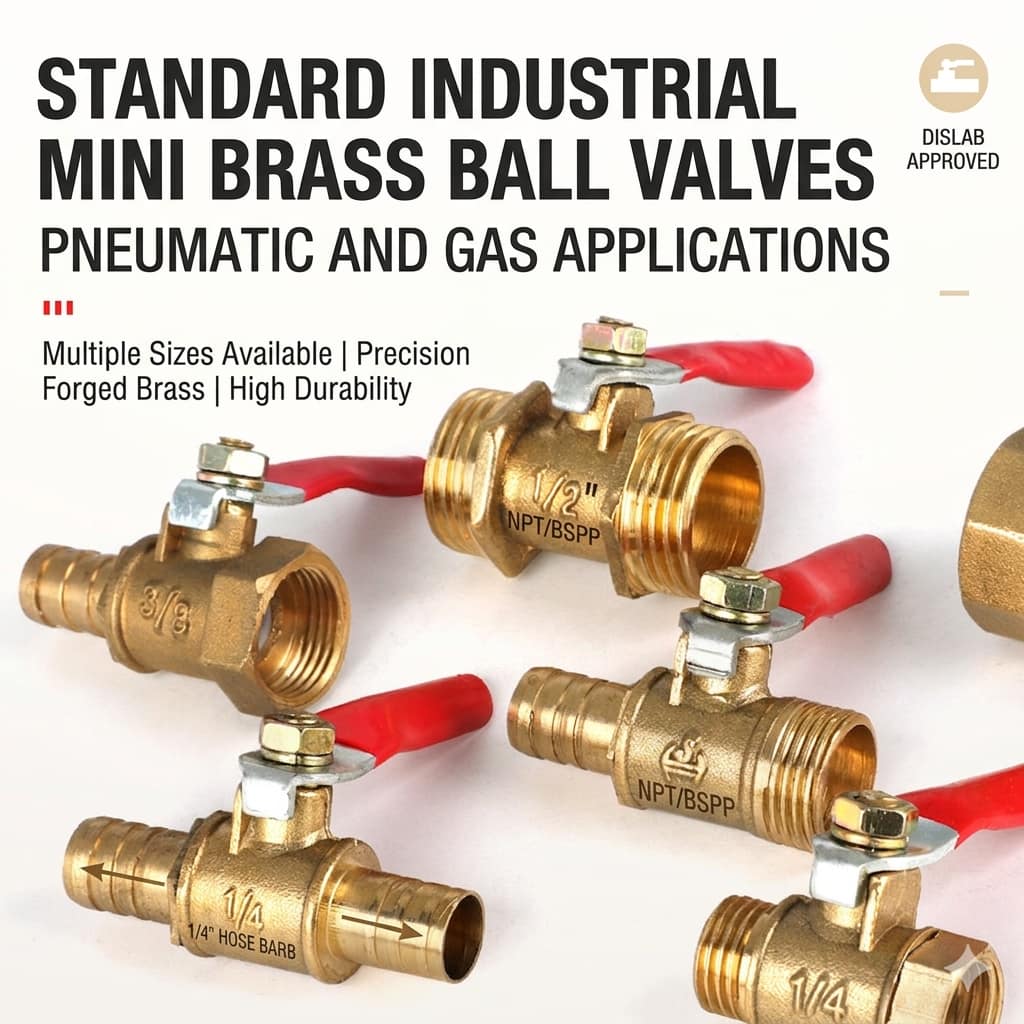

In modern industrial automation, precision and reliability are non-negotiable. The Mini Brass Ball Valve stands as a critical component for anyone managing pneumatic systems or fluid control lines. Whether you are looking for a pneumatic manual shut-off valve or a compact air flow control switch, this versatile hardware ensures seamless operation and leak-proof performance.
Why Choose Our Industrial-Grade Mini Brass Ball Valves?
Our mini ball valves are engineered from high-strength forged brass, providing superior durability compared to standard alloy alternatives. These small diameter industrial valves are designed to fit into tight spaces where full-sized valves cannot operate, making them the go-to solution for manifold systems and laboratory equipment.
Key Technical Specifications
- Material: High-quality forged brass (Nickel-plated or natural finish)
- Working Pressure: Up to 200 PSI (depends on specific model)
- Temperature Range: -10°C to 100°C
- Connection Types: NPT thread brass valve, BSPP, and Hose Barb options.
Technical Specifications of Mini Brass Ball Valves for Pneumatic Control
Explore our comprehensive range of connection types, sizes, and industrial application scenarios.
| Model Series | Nominal Size (DN) | Connection Options | Industrial Application Scenarios |
|---|---|---|---|
| Dual Female (F/F) | DN06 / 08 / 10 / 15 | Double Internal Thread | Standard air line shut-off, plumbing systems |
| Dual Male (M/M) | DN06 / 08 / 10 / 15 | Double External Thread | Manifold connections, pneumatic air tank outlets |
| Male to Female (M/F) | DN06 / 08 / 10 / 15 | Male to Female Thread | Compact equipment space, direct pipe-to-component link |
| Thread to Barb | Hose OD: 6 / 8 / 10 / 12mm | M/F Thread + Pagoda Barb | Flexible tubing air lines, rapid hose maintenance |
| High-Pressure Series | Full Range | 1.0 MPa (PN10) Rating | Industrial automation, compressed air tool control |
| Material Spec | All Models | Forged Brass (Nickel-Plated) | Corrosion-resistant environments, high-durability needs |
Diverse Connection Options for Every Application

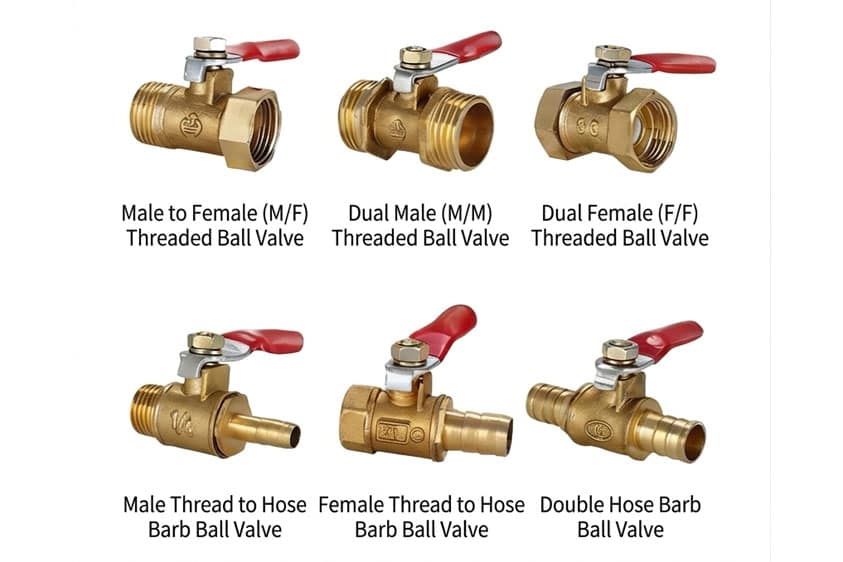

One of the strengths of our product line is the variety of configurations available. We understand that every pneumatic system setup is unique, which is why we offer:
- Male to Female (M/F) Threaded Ball Valve: Ideal for connecting a pipe to a fixed component.
- Dual Male (M/M) Threaded Ball Valve: Perfect for joining two female-threaded fittings.
- Dual Female (F/F) Threaded Ball Valve: The standard choice for inline pipe connection.

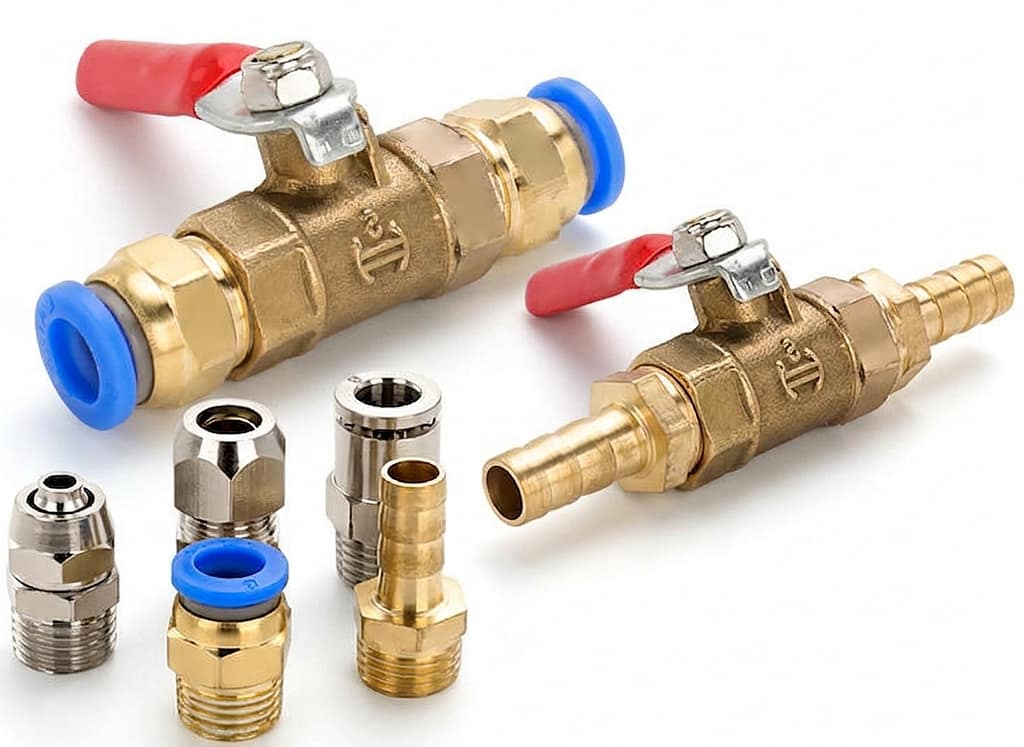

- Hose Barb Configurations: Specifically designed for secure connection with flexible tubing and hoses.
Applications of Pneumatic Manual Shut-Off Valves
These valves are not just for air; they are highly effective across multiple media including water, oil, and inert gases. Typical applications include:
- Air Compressor Lines: Quick shut-off for maintenance or safety.
- Water Processing: Controlling small-scale fluid flow in industrial labs.
- Automated Machinery: Acting as a compact air flow control switch within complex pneumatic circuits.
Features That Set DISLAB Products Apart
- Leak-Proof Performance: Each NPT thread brass valve is tested for pressure integrity to ensure zero leakage.
- Ergonomic Lever Handle: The red-coated handle is designed for a comfortable grip and clear visual indication of the valve’s status (Open/Closed).
- Corrosion Resistance: The brass construction provides excellent resistance to oxidation, extending the service life in humid industrial environments.
How to Order the Right Valve for Your Project
When selecting a mini brass ball valve, consider the thread size and the flow direction. At DISLAB, we provide comprehensive technical support to help you choose the right male to female brass ball valve or barb-end switch for your specific industrial needs.
Contact DISLAB today for bulk pricing and technical datasheets for your pneumatic infrastructure.
