In precision engineering, managing force direction is the key to mechanical longevity. High-precision thrust ball bearings are specifically designed to handle loads that act parallel to the shaft axis. At DISLAB, we provide professional-grade thrust bearing units that ensure smooth rotation and exceptional axial rigidity, making them indispensable for power transmission in high-speed industrial applications.
Understanding Thrust Bearing Mechanics

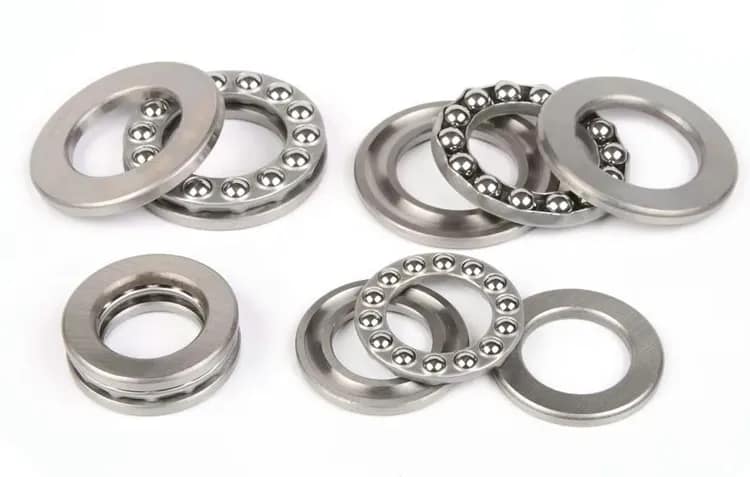

Unlike radial bearings, a thrust ball bearing is composed of two “washer-like” rings (raceways) and a caged ball assembly. This configuration is engineered for a specific functional purpose:
- Dedicated Axial Support: Our bearings are optimized to sustain heavy axial loads, preventing shaft displacement in vertical or horizontal drive systems.
- High-Speed Stability: Featuring precision-ground raceways that minimize friction and heat generation during high-speed rotation.
- Single Direction & Double Direction: We offer single direction thrust ball bearings for one-way axial forces and double direction units for more complex, alternating load environments.
- Premium Material Grade: Manufactured from high-carbon chrome steel (GCr15), ensuring maximum fatigue resistance and extended service life in industrial machinery.
Key Configurations for Precision Motion
As a specialized industrial components supplier, DISLAB ensures our thrust series meets the rigorous demands of global manufacturing:
- Miniature Thrust Bearings: Ideal for small-scale robotics and medical instruments where space is limited but precision axial motion is required.
- Grooved Raceway Series: Designed with deep grooves to enhance the contact area, allowing for higher load ratings and quieter operation in factory automation systems.
- Custom Cage Materials: Available with steel, brass, or high-performance resin cages to suit specific temperature and lubrication requirements.
Technical Specifications at a Glance
| Thrust Bearing Feature | Industrial Specification |
|---|---|
| Load Performance | Pure Axial Load Support (High Rigidity) |
| Surface Treatment | Precision Ground and Polished Raceways |
| Assembly Design | Separable Components (Easy Mounting & Maintenance) |
| Tolerances | Compliant with ABEC-1 to ABEC-5 (ISO P0-P5) |
| Contact Angle | 90° Degrees (Optimized for Pure Thrust Force) |
Key Applications for Axial Thrust Bearings
Our wholesale thrust ball bearings are critical components in industries where stability is non-negotiable:
- Automotive Steering & Transmission: Providing the smooth pivot and support needed for steering columns and gearbox assemblies.
- Industrial Pumps & Compressors: Managing the high axial pressure generated by fluid or gas displacement.
- Machine Tool Spindles: Ensuring the accuracy of vertical drill presses and milling machines under heavy cutting forces.
- Aerospace & Defense: High-performance precision rotation parts for flight control actuators and sensitive radar systems.
Engineering Superior Motion with DISLAB
Precision in the lab leads to performance in the field. Whether you are searching for an affordable thrust bearing solution for a new prototype or sourcing bulk industrial bearings for a global production line, DISLAB provides the technical expertise and quality control your project demands.
[Request a Technical Quote Today] to consult with our engineering team on the optimal thrust bearing configuration for your axial load requirements.
