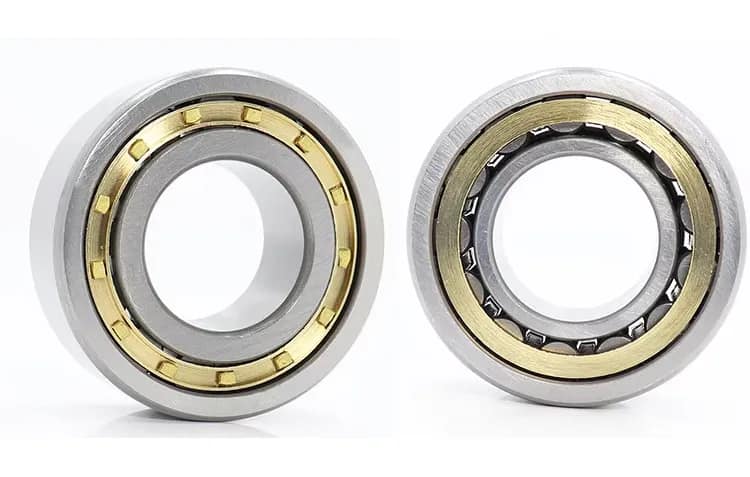

In the world of high-speed automation and heavy-duty machinery, managing radial force with minimal friction is essential for system efficiency. Cylindrical roller bearings, specifically the single row bearing configuration, are designed to provide maximum line contact between the rollers and raceways. At DISLAB, we supply professional-grade cylindrical roller units engineered to deliver superior radial load capacity and high-speed stability in demanding industrial environments.
The Engineering Advantage of Cylindrical Rollers
Unlike standard ball bearings, single row cylindrical roller bearings utilize modified line contact to distribute loads more effectively. This geometry offers several critical performance benefits:
- Exceptional Radial Load Capacity: The design is optimized for heavy-duty industrial loads, making them the primary choice for large motors and machine tool spindles.
- High-Speed Capabilities: Precision-ground rollers and advanced cage designs allow for high-speed rotation with reduced heat generation.
- Separable Design: Most configurations (such as NU, NJ, and NUP) feature separable inner or outer rings, which greatly simplifies mounting, dismounting, and maintenance inspections.
- Thermal Expansion Accommodation: Certain designs allow for axial displacement, enabling the bearing to accommodate shaft expansion caused by heat during continuous operation.
Versatile Configurations for Industrial Automation
As a specialized industrial components supplier, DISLAB offers various cylindrical roller bearing types to meet specific mechanical constraints:
- NU Series: The outer ring has two integral flanges while the inner ring has no flanges, allowing for axial displacement in both directions.
- NJ Series: Features two flanges on the outer ring and one on the inner ring, enabling the bearing to provide axial location in one direction.
- NUP Series: Equipped with two flanges on the outer ring and one fixed flange plus a loose flange washer on the inner ring, allowing for axial location in both directions.
Technical Specifications at a Glance
| Technical Feature | Industrial Specification |
|---|---|
| Load Handling | Superior Radial Load Capacity (Line Contact Design) |
| Speed Rating | Optimized for High-Speed and Ultra-High-Speed Rotation |
| Structural Flexibility | Separable Components (Inner/Outer Ring) for Easy Assembly |
| Friction Level | Low Starting and Running Torque for Energy Efficiency |
| Precision Standard | ISO/ABEC Grade P6/P5 for High-Accuracy Spindles |
Key Applications for Single Row Roller Bearings
Our wholesale cylindrical roller bearings serve as the backbone for high-performance equipment across multiple sectors:
- Electric Motors: Providing the rigid support and low-friction rotation required for high-efficiency industrial motors.
- Gearboxes & Transmissions: Handling high radial forces in automotive and heavy machinery power trains.
- Machine Tool Spindles: Ensuring extreme precision and stiffness in CNC milling and turning centers.
- Pumps & Compressors: Delivering reliable service life in high-pressure fluid handling systems.
Maximize Your Machine Performance with DISLAB
Precision in the lab leads to durability in the field. Whether you are engineering a custom robotic arm or sourcing bulk cylindrical bearings for a global manufacturing line, DISLAB provides the technical expertise and rigorous quality control your project requires.
[Request a Heavy-Duty Quote Today] to consult with our engineering team on the optimal roller bearing configuration for your application.
