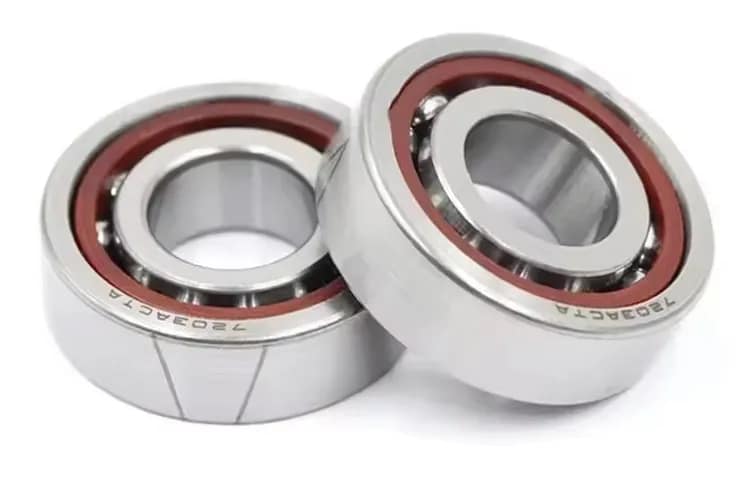

In high-performance engineering, maintaining rotational accuracy under combined loads is a critical challenge. High-precision angular contact ball bearings are specifically engineered with a contact angle that allows them to support significant axial and radial loads simultaneously. At DISLAB, we provide professional spindle bearing units designed to meet the rigorous demands of CNC machining, aerospace components, and high-frequency motors.
The Engineering Advantage of Angular Contact Design
The defining characteristic of an angular contact ball bearing is the internal raceway displacement, which allows the load to be transmitted through the bearing at a specific angle. Our precision machine tool bearingsoffer several technical advantages:
- Combined Load Handling: Perfectly suited for applications requiring high radial stiffness and high axial load capacity in one direction.
- High-Speed Capability: Optimized internal geometry and refined finishes reduce friction, making these high-speed spindle bearings ideal for RPM-intensive environments.
- Enhanced Rigidity: When mounted in pairs (back-to-back or face-to-face), they provide extreme system rigidity and minimize shaft deflection.
- Reduced Vibration & Noise: Manufactured to ABEC-7 and ABEC-9 standards, ensuring silent operation in sensitive laboratory automation equipment.
Optimized for Precision CNC and Automation
As a specialized industrial components supplier, DISLAB ensures that our wholesale angular contact bearings are built to survive the heat and stress of modern manufacturing:
- High-Grade Chrome Steel (GCr15): Every ring is heat-treated to HRC 60-65 for maximum fatigue life and wear resistance.
- Specialized Caging: Available in high-speed phenolic resin or machined brass to ensure stability at extreme rotational frequencies.
- Precision Contact Angles: Standard 15° (C), 25° (A5), and 40° (B) angles available to customize the ratio of radial-to-axial load handling.
Technical Specifications at a Glance
| Technical Property | Angular Contact Performance |
|---|---|
| Load Versatility | Simultaneous Radial and Axial Force Support |
| Max RPM Rating | Optimized for Ultra-High Speed CNC Spindles |
| Preload Accuracy | Factory-Set for Maximum System Stiffness |
| Dimensional Stability | Zero-Thermal Expansion Options (Hybrid Ceramic) |
| Material Integrity | HRC 60-65 Induction Hardened Chrome Steel |
Key Applications for High-Accuracy Bearing Units
Our precision industrial motion solutions are the trusted choice for industries where “micron-level” accuracy is the standard:
- CNC Machine Spindles: Providing the core stability for high-speed milling, grinding, and turning centers.
- Electric Motor Rotors: Enhancing the efficiency and lifespan of high-frequency induction motors.
- Precision Robotics: Supporting the articulated joints of industrial robots requiring high positioning accuracy.
- Aerospace Instrumentation: Ensuring reliable performance in high-altitude, high-speed flight control systems as premium aerospace bearings.
Elevate Your Precision Standards with DISLAB
Precision in the lab leads to absolute reliability in the field. Whether you are upgrading a CNC spindle or sourcing bulk angular contact bearings for a global automation project, DISLAB provides the technical expertise and high-performance materials your project demands.
[Request a Technical Quote Today] to consult with our engineering team on the optimal contact angle and mounting configuration for your specific high-speed application.
