In complex mechanical assemblies, secure mounting is just as vital as smooth motion. Flanged linear ball bearingseliminate the need for separate bearing housings by integrating a mounting flange directly into the bearing body. At DISLAB, we supply a premium selection of LMF round flange bearings and LMK square flange bushings, designed to provide rock-solid stability and high-precision linear travel for your automated systems.
The Advantages of Integrated Flange Bearings
By choosing recirculating flanged bushings, engineers can reduce the total part count and assembly time of their machinery. Our industrial flanged linear bearings offer several key benefits:
- Simplified Bolt-On Installation: The integrated flange allows the bearing to be bolted directly to the machine frame or carriage, ensuring perfect perpendicular alignment.
- High Moment Load Resistance: The wide base of the LMF/LMK flange series provides superior resistance to tilting and vibration compared to standard cylindrical bushings.
- Space-Efficient Mounting: Ideal for applications where a traditional bearing housing would be too bulky or difficult to secure.
- Interchangeable Standards: Our precision flanged bearings comply with international ISO dimensions, allowing for seamless integration into global CNC and robotic designs.
LMF vs. LMK: Selecting the Right Flange Profile
As a specialized industrial components supplier, DISLAB provides multiple flange geometries to fit your specific spatial constraints:

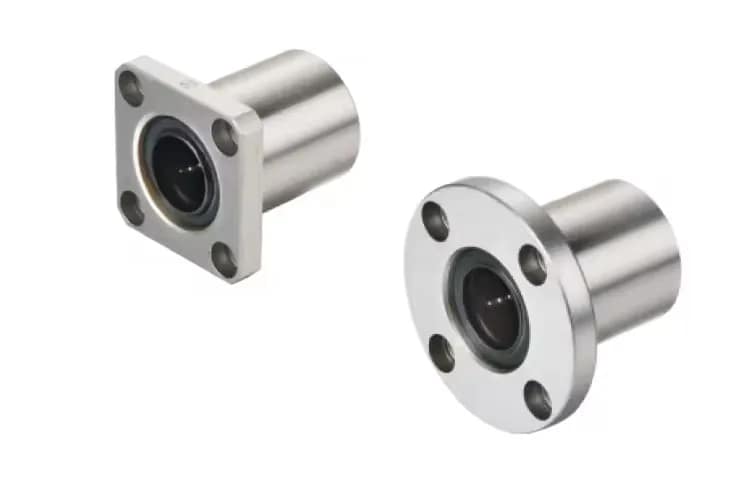

- LMF Series (Round Flange): The classic round flanged linear bearing, offering a balanced distribution of mounting holes for general industrial use.
- LMK Series (Square Flange): Features a square mounting flange, which is ideal for corner placements or designs where flat edges are required for alignment.
- LMH Series (Oval Flange): A specialized truncated flange bearing for applications where height is restricted.
- Long Type Flanged Bearings (LMF..L / LMK..L): Equipped with double the ball circuits for maximum rigidity and load-bearing capacity.
Technical Specifications at a Glance
| Flange Bearing Feature | Industrial Specification |
|---|---|
| Mounting Integration | Integrated Pilot Flange (LMF/LMK) for Bolt-On Stability |
| Load Handling | Enhanced Resistance to Radial and Moment Loads |
| Seal Protection | Dual UU Rubber Seals to Prevent Contamination |
| Surface Hardness | HRC 60-64 for Maximum Wear Resistance |
| Retainer Options | Low-Noise Synthetic Resin or All-Steel High-Temp |
Key Applications for Flanged Linear Bushings
Our wholesale flanged linear bearings are essential for industries requiring robust, repeatable motion:
- Vertical Motion Systems: Ensuring the carriage remains securely attached to the guide shafts in lift systems.
- Pick-and-Place Robotics: Providing the structural base for high-speed robotic arms in factory automation.
- Packaging Equipment: Reliable and durable recirculating linear motion for high-cycle labeling and boxing machines.
- Precision CNC Machines: Stable support for Z-axis assemblies and industrial cutting tables.
Enhance Your Structural Stability with DISLAB
Precision in the lab leads to durability in the factory. Whether you need bulk flanged linear bearings for a production run or a specific LMF20UU round flange bushing for a custom build, DISLAB delivers the engineering excellence and strict quality control your project demands.
[Request an Industrial Quote] today to explore our full range of flanged motion solutions.
